IBC Tank Blow Molding Machine
Precision extrusion blow molding for 500-1500L IBC tanks. Single, double, and 2+1 multi-layer configurations engineered for consistent wall thickness and high daily output.
500-1500L
Product Volume
30 pcs/h
Maximum Output
1 / 2 / 2+1
Layer Options
25 kg
Max. Parison Weight
1,140 kN
Clamping Force
Engineered for Consistent, High-Volume IBC Production
Built around a heavy-duty accumulator head and servo-driven extrusion, the machine is purpose-made for HDPE liner and container production, with the flexibility to move between single-layer and multi-layer co-extrusion.
High-Output Extrusion System

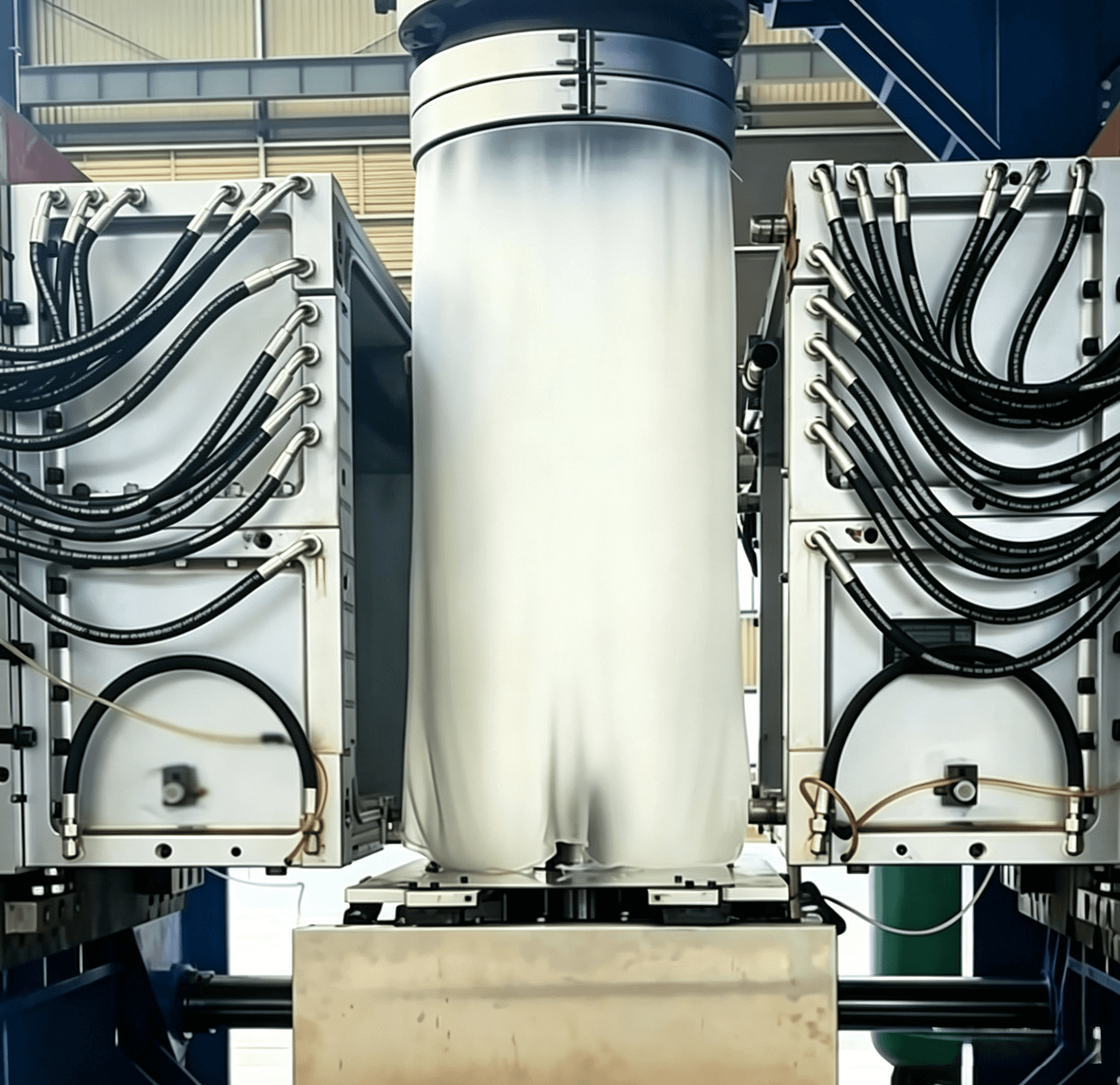

A FIFO accumulator head stores and discharges melt in a single continuous shot, giving even wall distribution across large-format parisons. Paired with servo-hydraulic drives, the system cuts energy consumption by 30-50% against conventional models while holding tight repeatability shot after shot.
Axial & Radial Wall Thickness Control
A 100 or 300-point parison control system adjusts die gap along both the axial and radial axes in real time, redistributing material to the container’s most stressed zones. The result is lower resin consumption per part and a more consistent, UN-certifiable wall profile.
Heavy-Duty Clamping, Hydraulics & PLC Control
A 1,140 kN clamping unit and stabilized hydraulic circuit keep the mold seated through every cycle, even during multi-layer, heavier-parison runs. Siemens or Schneider PLC/HMI interfaces manage recipes, multi-language operation, and logging, with Ethernet-based remote diagnostics for support after installation.
What Keeps Buyers Up at Night — and How We Answer It
High energy consumption and raise cost
With servo motor application, we can save you upto 35% energy consumption
Longer downtime after a weekend and bottles with black spots
Deman halps you to reduce as much downtime as possible, you can resume normal production within 30mins
Downtime on long production runs
Heavy-duty clamping and a stabilized hydraulic circuit are built for continuous 24/7 duty cycles.
Multi-layer product development is complex
Single-layer, double-layer, and 2+1 co-extrusion configurations are pre-engineered and selectable at order time.
Operation depends on a few skilled workers
Recipe management and a visual PLC/HMI interface reduce reliance on operator experience.
Servicing an overseas machine is hard
Ethernet-based remote diagnostics let our engineers troubleshoot most issues without a site visit.
Core Technology Advantages
Six systems working together to deliver repeatable output, lower material cost, and easier long-term operation.
High-Capacity Extrusion System
Servo-driven single or twin-screw extruders deliver stable melt at high throughput. Value: shorter cycle times without sacrificing melt quality.
FIFO Accumulator Head
First-in-first-out melt storage discharges a single continuous parison shot. Value: even wall distribution on large-format tanks.
Axial & Radial Wall Thickness Control
100 or 300-point real-time die-gap programming. Value: less resin per part with a stronger, more consistent wall.
Multi-Layer Co-Extrusion
Switch between single, double, and 2+1 layer builds on one platform. Value: one machine covers multiple product lines.
Heavy-Duty Clamping Unit
1,140 kN clamping force with a stabilized hydraulic circuit. Value: reliable mold seating on continuous, 24/7 duty cycles.
Intelligent Control & Remote Service
Siemens/Schneider PLC-HMI with Ethernet diagnostics. Value: recipe consistency and remote troubleshooting after installation.
Three Configurations, One Platform
Double-Layer Configuration
Extruders: 2 coordinated screw units
Melt capacity: dual-stream, balanced feed
Structure: two-material co-extruded wall
Best for: virgin/recycled combinations and barrier layers.
2+1 Multi-Layer Configuration
Extruders: 3 units (2 outer + 1 tie/barrier)
Melt capacity: highest, precision-balanced
Structure: 3-layer wall with a functional tie layer
Best for: chemical-grade barrier containers and premium specs.
Which Configuration Is Right for Your Project?
Full Technical Specifications
Grouped by system, compared across all three layer configurations.
Extruder
Single-Layer
Double-Layer
2+1 Multi-Layer
Screw diameter
Ø90 mm
Ø90 / Ø65 mm
Ø90 / Ø65 / Ø50 mm
L/D ratio
30:1
30:1 / 28:1
30:1 / 28:1 / 25:1
Output capacity
180 kg/h
220 kg/h combined
260 kg/h combined
Extrusion Head
Single-Layer
Double-Layer
2+1 Multi-Layer
Accumulator type
FIFO, single shot
FIFO, dual-layer shot
FIFO, 3-layer co-shot
Parison control points
100-point
100 / 300-point
300-point, axial + radial
Clamping Unit
Single-Layer
Double-Layer
2+1 Multi-Layer
Clamping force
900 kN
1,140 kN
1,140 kN
Max. parison weight
18 kg
22 kg
25 kg
Hydraulic Unit
Single-Layer
Double-Layer
2+1 Multi-Layer
Drive type
Servo-hydraulic
Servo-hydraulic
Servo-hydraulic
Energy saving vs. conventional
30%
35-45%
40-50%
Control System & HMI
Single-Layer
Double-Layer
2+1 Multi-Layer
PLC / HMI
Siemens / Schneider
Siemens / Schneider
Siemens / Schneider
Remote diagnostics
Ethernet-based
Ethernet-based
Ethernet-based
Energy & Utilities
Single-Layer
Double-Layer
2+1 Multi-Layer
Installed power
95 kW
140 kW
185 kW
Compressed air / cooling water
0.6 MPa / 15°C
0.6 MPa / 15°C
0.6 MPa / 15°C
Machine Dimensions
Single-Layer
Double-Layer
2+1 Multi-Layer
Footprint (L x W x H)
9.5 x 3.2 x 6.8 m
11.0 x 3.6 x 6.8 m
12.8 x 3.8 x 7.2 m
Approx. machine weight
18 t
24 t
29 t
Applications
Chemical Packaging
Lubricants
Food Ingredients
Agriculture
Industrial Logistics
IBC Reconditioning
Why Choose DEMAN
A manufacturer focused entirely on industrial packaging blow molding equipment, with the plant, lab, and engineering team to back it.
10,000 m²
Manufacturing Area
~1,000 m²
R&D Research Institute
30+
R&D & Test Equipment
50+
Export Markets
120+
Global Installations
Factory floor placeholder
R&D lab placeholder
Engineering team placeholder
Frequently Asked Questions
What container capacities can the machine produce?
What is the difference between the three layer configurations?
Under what conditions is the maximum 30 pcs/h reached?
Do you need our tank drawing to quote?
Is the mold included in the machine quotation?
What utilities does the line require?
Do you provide installation and training?
Can you deliver a complete IBC production line?
How does remote after-sales support work?
What information do you need to prepare a quotation?
